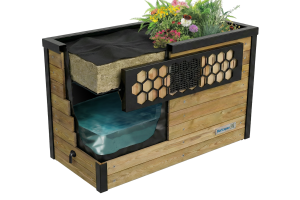

High Attenuation SuDS Planter

Transform Rainwater Management into a Landscape Feature

The High Attenuation SuDS Planter is a powerful yet attractive sustainable drainage solution that helps developments manage surface water runoff, reduce flood risk and create greener, more resilient environments.

Engineered to capture rainwater directly from roof drainage systems, the planter stores up to 500 litres of stormwater before releasing it slowly at a controlled rate of less than 0.05 litres per second. This significantly reduces pressure on drainage infrastructure during heavy rainfall events and helps developments meet Sustainable Drainage System (SuDS) requirements.

Unlike traditional drainage systems that simply move water elsewhere, the High Attenuation SuDS Planter combines stormwater attenuation, water filtration and landscape enhancement in a single integrated solution. The result is effective flood mitigation that also improves the appearance and environmental value of a site.

Deliver Sustainable Drainage and Biodiversity Benefits

Available with optional integrated habitat features, the planter can contribute towards Biodiversity Net Gain (BNG) objectives by creating valuable ecological space within urban and commercial developments. This makes it an ideal solution for projects seeking to balance drainage performance with environmental enhancement.

The built-in filtration media helps improve water quality by treating runoff before discharge, supporting best-practice sustainable drainage design and helping developments achieve planning and environmental objectives.

Key Benefits

✔ Attenuates up to 500 litres of stormwater runoff

✔ Reduces surface water flooding and drainage network overload

✔ Supports SuDS compliance and sustainable drainage strategies

✔ Integrated water quality treatment through filtration media

✔ Available with optional BNG habitat enhancements

✔ Enhances landscape aesthetics and urban greening initiatives

✔ Flexible left or right outlet positioning for easy installation

✔ Ideal for residential, commercial, educational and public realm projects

✔ Durable, low-maintenance above-ground drainage solution

Ideal Applications

The High Attenuation SuDS Planter is suitable for:

• Residential housing developments
• Commercial and mixed-use schemes
• Schools, colleges and universities
• Healthcare facilities
• Public realm and streetscape projects
• Urban regeneration developments
• Retrofit drainage improvement projects
• Biodiversity Net Gain (BNG) schemes
• Blue-green infrastructure projects

Technical Specifications

Standard SuDS Planter

• Dimensions: 1286 x 602 x 850 mm
• Water Attenuation Capacity: 500L
• Total Volume: 540L
• Filtration Media Volume: 150L
• Controlled Outflow: <0.05L/s
• Empty Weight: 54kg

SuDS Planter with Habitats

• Dimensions: 1286 x 650 x 850 mm
• Water Attenuation Capacity: 500L
• Total Volume: 540L
• Filtration Media Volume: 150L
• Controlled Outflow: <0.05L/s
• Empty Weight: 59kg

Why Choose the High Attenuation SuDS Planter?

As climate change increases the frequency of intense rainfall events, effective stormwater management has become a critical requirement for modern developments. The High Attenuation SuDS Planter provides a practical, attractive and environmentally responsible solution that helps reduce flood risk, improve water quality and create greener spaces for people and nature.

Whether your project requires SuDS compliance, Biodiversity Net Gain enhancements or improved surface water management, this innovative planter delivers exceptional performance without compromising on aesthetics.
